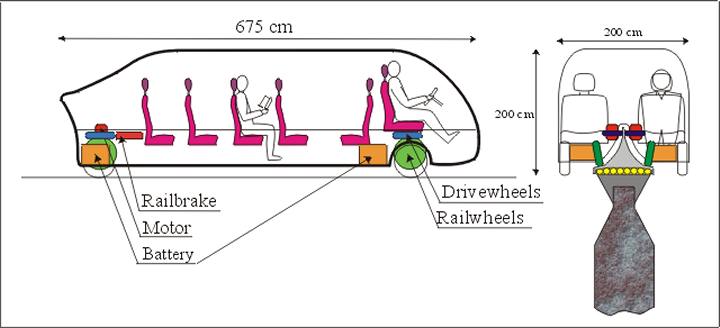

Maxi-ruf dimensions




The cross section of the maxi-ruf is only 2 x 2 m. The low height is possible because there are no standing passengers. With the relatively short wheel distance it is possible to have a low floor.

The rail channel is a little wider in the middle than at the wheel positions. This enables the maxi-ruf to use a curved rail with a radius of curvature of 26 m. With this curve, it is comfortable to turn at 30 km/h (8 m/sec).

The channel can be used for luggage or extra passengers seated facing sidewards.
